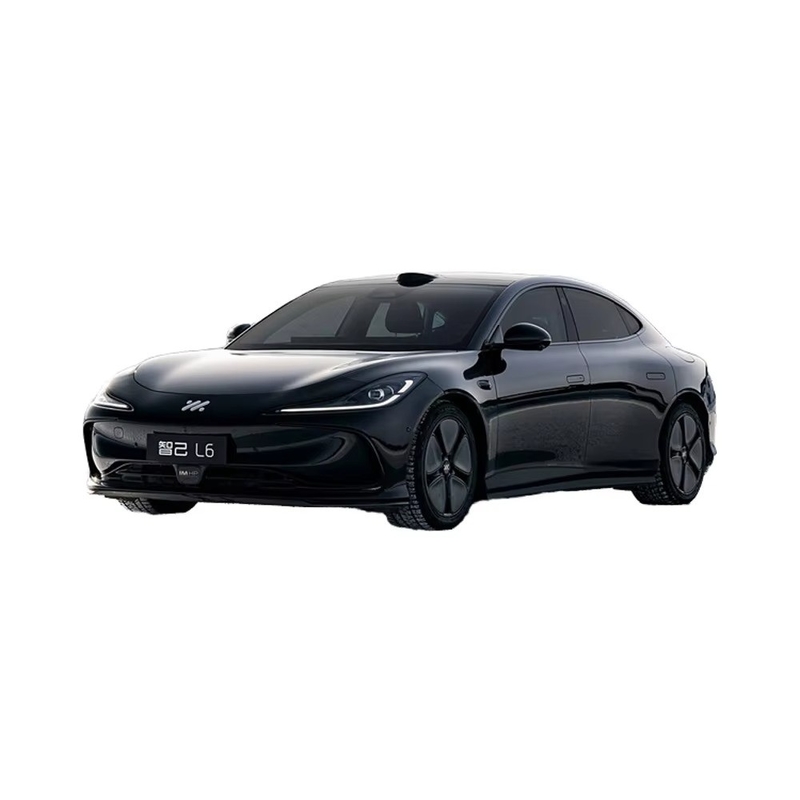

650KM-780KM Range 4WD Electric SUV Car with Auto Gear Box ZHIJI L6 Energy Vehicle
Product Details:
Place of Origin: | China |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $30,000.00 - $41,000.00/sets |
Detail Information |
Product Description
Product Description








model | IM L6 2024 Max Standard Edition | IM L6 2024 Max Long Range European Edition | IM L6 2024 Max Long Range Edition | IM L6 2024 Max Ultra Long Range Edition | IM L6 2024 Max Super Performance Edition |
Class | Medium and Large Car | Medium and Large Car | Medium and Large Car | Medium and Large Car | Medium and Large Car |
Energy Type | Pure Electric | Pure Electric | Pure Electric | Pure Electric | Pure Electric |
Listing Time | 2024.05 | 2024.05 | 2024.05 | 2024.05 | 2024.05 |
CLTC Pure Electric Range (km) | 650 | 710 | 710 | 850 | 780 |
Battery Fast Charging Time (hours) | 0.425 | 0.28 | 0.28 | 0.28 | 0.28 |
Battery Fast Charging Percentage Range (%) | 10 - 80 | 10 - 80 | 10 - 80 | 10 - 80 | 10 - 80 |
Maximum Power (kW) | 216 | 248 | 248 | 300 | 579 |
Maximum Torque (N·m) | 450 | 500 | 500 | 500 | 800 |
Body Structure | 5-door 5-seat Hatchback | 5-door 5-seat Hatchback | 5-door 5-seat Hatchback | 5-door 5-seat Hatchback | 5-door 5-seat Hatchback |
Motor (Ps) | 294 | 337 | 337 | 408 | 787 |
Length * Width * Height (mm) | 4931 * 1960 * 1474 | 4931 * 1960 * 1474 | 4931 * 1960 * 1474 | 4931 * 1960 * 1474 | 4931 * 1960 * 1474 |
Official 0 - 100 km/h Acceleration (s) | 5.6 | 4.6 | 4.6 | 4.6 | 2.74 |
Maximum Speed (km/h) | 200 | 220 | 220 | 222 | 268 |
Electric Energy Equivalent Fuel Consumption (L/100 km) | 1.53 | 1.47 | 1.47 | 1.45 | 1.56 |
Curb Weight (kg) | 2130 | 2090 | 2090 | 2160 | 2250 |
Maximum Full Load Mass (kg) | 2580 | 2540 | 2540 | 2610 | 2700 |
Body | |||||
Length (mm) | 4931 | 4931 | 4931 | 4931 | 4931 |
Width (mm) | 1960 | 1960 | 1960 | 1960 | 1960 |
Height (mm) | 1474 | 1474 | 1474 | 1474 | 1474 |
Wheelbase (mm) | 2950 | 2950 | 2950 | 2950 | 2950 |
Front Track (mm) | 1665 | 1665 | 1665 | 1665 | 1665 |
Rear Track (mm) | 1672 | 1672 | 1672 | 1672 | 1672 |
Approach Angle (°) | 14 | 14 | 14 | 14 | 14 |
Departure Angle (°) | 18 | 18 | 18 | 18 | 18 |
Minimum Turning Radius (m) | 4.99 | 4.99 | 4.99 | 4.99 | 4.99 |
Body Structure | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback |
Door Opening Mode | Swing Door | Swing Door | Swing Door | Swing Door | Swing Door |
Number of Doors | 5 | 5 | 5 | 5 | 5 |
Number of Seats | 5 | 5 | 5 | 5 | 5 |
Trunk Volume (L) | 457 - 1290 | 457 - 1290 | 457 - 1290 | 457 - 1290 | 457 - 1290 |
Wind Resistance Coefficient (Cd) | - | - | - | - | - |
Motor | |||||
Front Motor Brand | - | - | - | - | United Electronics |
Rear Motor Brand | Hua Yu Electric | Hua Yu Electric | Hua Yu Electric | Hua Yu Electric | Hua Yu Electric |
Front Motor Model | - | - | - | - | TZ180XS0952 |
Rear Motor Model | TZ230XY1301 | TZ230XY1251 | TZ230XY1251 | TZ230XY1251 | TZ230XY1351 |
Motor Type | Permanent Magnet/Synchronous | Permanent Magnet/Synchronous | Permanent Magnet/Synchronous | Permanent Magnet/Synchronous | Permanent Magnet/Synchronous |
Total Motor Power (kW) | 216 | 248 | 248 | 300 | 579 |
Total Motor Power (Ps) | 294 | 337 | 337 | 408 | 787 |
Total Motor Torque (N·m) | 450 | 500 | 500 | 500 | 800 |
Front Motor Maximum Power (kW) | - | - | - | - | 200 |
Rear Motor Maximum Power (kW) | 216 | 248 | 248 | 300 | 379 |
Rear Motor Maximum Torque (N·m) | 450 | 500 | 500 | 500 | - |
Driving Motor Number | Single Motor | Single Motor | Single Motor | Single Motor | Dual Motors |
Motor Layout | Rear-mounted | Rear-mounted | Rear-mounted | Rear-mounted | Front + Rear |
Battery Type | Lithium Iron Phosphate Battery | Lithium-ion Battery | Lithium-ion Battery | Lithium-ion Battery | Lithium-ion Battery |
Battery Cell Brand | CALB | CATL | CATL | CATL | CATL |
Battery Cooling Method | Liquid Cooling | Liquid Cooling | Liquid Cooling | Liquid Cooling | Liquid Cooling |
CLTC Pure Electric Range (km) | 650 | 710 | 710 | 850 | 780 |
Battery Energy (kWh) | 75 | 83 | 83 | 100 | 100 |
Battery Energy Density (Wh/kg) | - | - | - | 180 | 180 |
Power Consumption per 100 km (kWh/100 km) | 13.5 | 13 | 13 | 12.8 | 13.8 |
Three-electric System Warranty | Eight years or 240,000 kilometers | Eight years or 240,000 kilometers | Eight years or 240,000 kilometers | Eight years or 240,000 kilometers | Eight years or 240,000 kilometers |
Fast Charging Function | Supported | Supported | Supported | Supported | Supported |
High-voltage Fast Charging | - | Supported | Supported | Supported | Supported |
High-voltage Platform (V) | 400 | 800 | 800 | Quasi 900 | Quasi 900 |
Battery Fast Charging Time (hours) | 0.425 | 0.28 | 0.28 | 0.28 | 0.28 |
Battery Fast Charging Percentage Range (%) | 10 - 80 | 10 - 80 | 10 - 80 | 10 - 80 | 10 - 80 |
Slow Charging Interface Position | Left Rear of the Car | Left Rear of the Car | Left Rear of the Car | Left Rear of the Car | Left Rear of the Car |
Fast Charging Interface Position | Left Rear of the Car | Left Rear of the Car | Left Rear of the Car | Left Rear of the Car | Left Rear of the Car |
External AC Discharge Power (kW) | 6 | 6.6 | 6.6 | 6.6 | 6.6 |
Transmission | |||||
Abbreviation | Electric Vehicle Single-speed Transmission | Electric Vehicle Single-speed Transmission | Electric Vehicle Single-speed Transmission | Electric Vehicle Single-speed Transmission | Electric Vehicle Single-speed Transmission |
Number of Gears | 1 | 1 | 1 | 1 | 1 |
Transmission Type | Fixed Ratio Transmission | Fixed Ratio Transmission | Fixed Ratio Transmission | Fixed Ratio Transmission | Fixed Ratio Transmission |
Chassis Steering | |||||
Drive Mode | Rear-wheel Drive | Rear-wheel Drive | Rear-wheel Drive | Rear-wheel Drive | Dual Motor Four-wheel Drive |
Four-wheel Drive Form | - | - | - | - | Electric Four-wheel Drive |
Front Suspension Type | Double Wishbone Independent Suspension | Double Wishbone Independent Suspension | Double Wishbone Independent Suspension | Double Wishbone Independent Suspension | Double Wishbone Independent Suspension |
Rear Suspension Type | Multi-link Independent Suspension | Multi-link Independent Suspension | Multi-link Independent Suspension | Multi-link Independent Suspension | Multi-link Independent Suspension |
Power Steering Type | Electric Power | Electric Power | Electric Power | Electric Power | Electric Power |
Vehicle Body Structure | Load-bearing | Load-bearing | Load-bearing | Load-bearing | Load-bearing |
Wheel Brake | |||||
Front Brake Type | Ventilated Disc | Ventilated Disc | Ventilated Disc | Ventilated Disc | Ventilated Disc |
Rear Brake Type | Ventilated Disc | Ventilated Disc | Ventilated Disc | Ventilated Disc | Ventilated Disc |
Parking Brake Type | Electronic Parking | Electronic Parking | Electronic Parking | Electronic Parking | Electronic Parking |
Front Tire Specification | 245/45 R19 245/40 R20 (8000 yuan) | 245/45 R19 245/40 R20 (8000 yuan) | 245/45 R19 245/40 R20 (8000 yuan) | 245/45 R19 245/40 R20 (8000 yuan) | 245/45 R19 245/40 R20 (8000 yuan) |
Rear Tire Specification | 275/40 R19 275/35 R20 (8000 yuan) | 275/40 R19 275/35 R20 (8000 yuan) | 275/40 R19 275/35 R20 (8000 yuan) | 275/40 R19 275/35 R20 (8000 yuan) | 275/40 R19 275/35 R20 (8000 yuan) |


Colors






Recommend Products

























Company Profile





FAQ
Q1: Which brand of vehicle can we purchase from your company? A1: We offer New Energy Vehicles and Used Cars, of Avatr, BYD, lixiang,neta,, Tesla, Hongqi, Geely and any other brand you want. In addition,related spares and accessories ,, Charging Stations can be bought from us. Q2: What are your payment terms? A2: We accept T/T and other flexible payment terms. Q3: What is your delivery time? A3: If there is a car, the delivery time is within 7 working days after receiving the deposit. If not, within 15 working days of receipt of the deposit. Q4: What is your mode of transportation? A4: Transport by trailer, rail or by sea using container or LCL or RO-ro ships according to your requirements and location. At the same time, we also provide you with the most efficient method both considering Timeliness and economy. Q5: how to provide the Product Warranty? A5: You can always enjoy technical support by phone or email. We will provide timely solutions. We also offer the most convenient and efficient spare parts support at competitive prices. Q6: why should you buy from us not from other suppliers? A6:Both professionality in supplychain of automotive industry and uprightness in business considering the benifit of both of us in trading. Q7:What is your support policy for dealers in overseas market? A7:We have marketing, advertising, and brand training for overseas dealers. we can set up regional agents according to the region for long-term cooperation.
